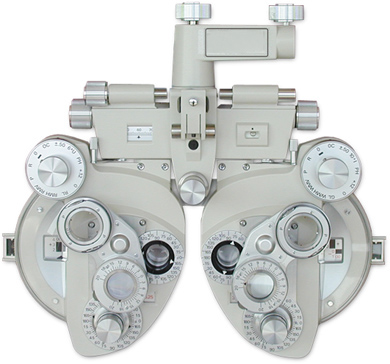

Manual Phoropter Head
(product code: MPH)

• Sphere Range: +16.75 to -19.00 D (0.25 D steps)

  Cylinder Range: 0.00 to -6.00 D (0.25D steps) (0.00 to -8.00 D with additional -2.00D)

  Cylinder axis: 0 to 180 (in 5° steps)

  Cross Cylinder: ±25 D

  Rotary Prisms: 0∆ to 20∆, (in 1∆ steps)

  Auxiliary lens dial:

  (O) Open aperture (two positions)

  (R) Retinoscopic lens, +1.50D

  (P) Polarizing lens: 45° left eye, 135° right eye

  (WMV) or (RMV)-Maddox rod, Vertical
                                  White-left eye
                                  Red-right eye

  (WMH) or (RMH)-Maddox rod. Horizontal
                                  White-left eye
                                  Red-right eye

  (RL) Red lens (GL) Green lens

  (+0.12)- +0.12D sphere

  (PH) Pin hole

  (10∆ L) or (6∆ U) -10∆ base-in-left eye, 6∆ base-up-right eye (dissociating prisms)

  (±0. 50)- fixed cross cylinder

  (OC) Occluder

• P.D. range: 48-75mm, 1mm steps

• Standard Accessory lenses: Two 0.12D and -2.00 cylinder lenses,  two Plano lenses for sealing front opening.

• Standard Accessories: 1 near point card with holder and reading rod, dust cover, face shield, accessory case for lenses.

• Dimensions: 318mm (H) x 293mm (W) x 96mm (D)

• Weight: 4.5 kg

• 1 year warranty
